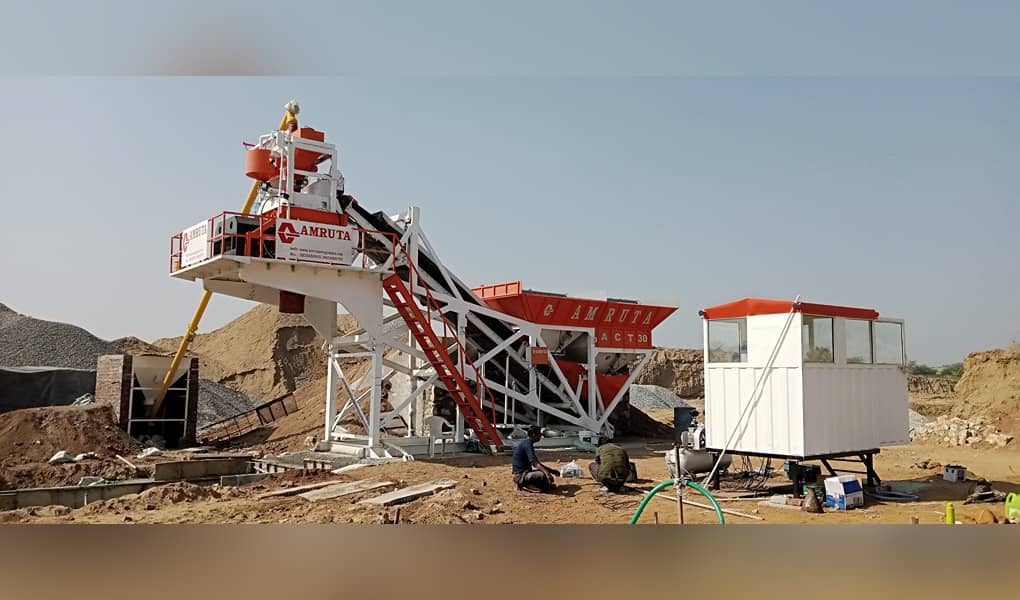

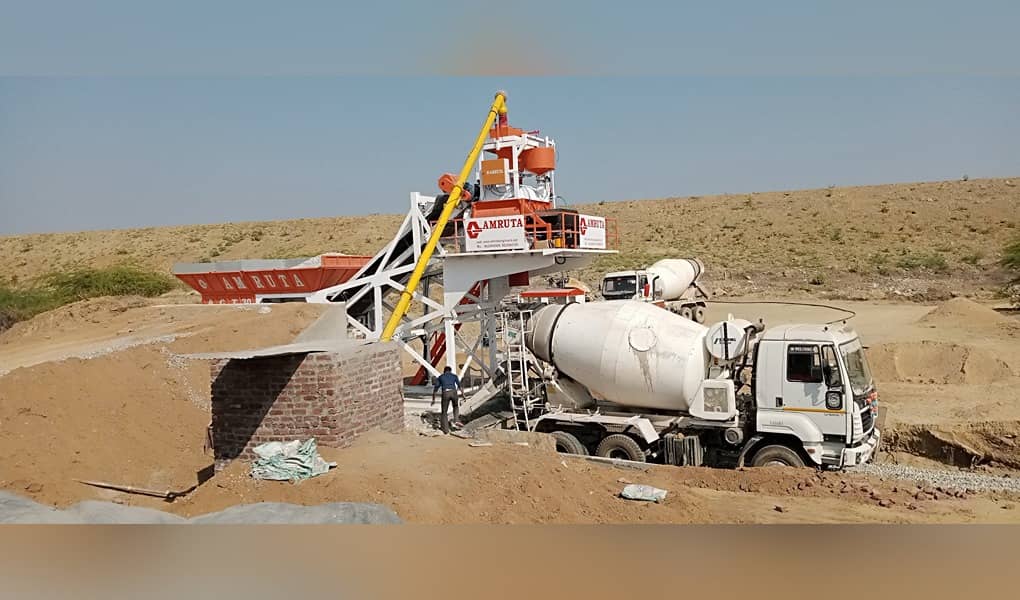

Introduction to Compact Batching Plant
Available in 30 to 120 Cum/Hour Capacity.
Compact and economically designed.
Heavy duty structure.
Concrete Discharges Height suitable for TM.
Rotary chute for discharge Concrete in pump (Optional)
Plug-on & Operate concrete batching plant.
Less space required because of its compactness.
Civil Foundation work is very fewer as compact design.
Negligible owning & operating cost.
Longer life of wear & tear parts.
Especially quick erection & commissioning.
Twin shaft mixer is capable to handling from high to zero slump concrete.
Planetary Mixer available on request.
| Sr. No. | Details | ACP / ACT 30 | ACP / ACT 45 | ACP / ACT 60 | ACP / ACT 75 | ACP / ACT 90 |
|---|---|---|---|---|---|---|
| 1 | Compacted Concrete | 30 Cum | 45 Cum | 60 Cum | 75 Cum | 90 Cum |
| 2 | Type of Mixer | Pan Mixer/ Twin Shaft | Pan Mixer/ Twin Shaft | Pan Mixer/ Twin Shaft | Pan Mixer/ Twin Shaft | Pan Mixer/ Twin Shaft |
| 3 | Mixer Capacity | 0.5 Cum | 0.75 Cum | 1 Cum | 1.25 Cum | 1.5 Cum |
| 4 | Input / Output Capacity | 750 / 500 Ltr. | 1250/750 Ltr. | 1500/1000 Ltr. | 2250/1500 Ltr. | 3000/2000 Ltr. |
| 5 | Bin Compartment | 2 x 2 Compartment | ||||
| 6 | Capacity of Each Compartment | 4.5 M3 | 6 M3 | 12.5 M3 | 15 M3 | 20 M3 |
| 7 | Aggregate Weighing System | S Type Load Cell | ||||
| 8 | Cement Weighing System | Electro Magnetic Load Cell based | ||||
| 9 | Water Weighing System | Electro Magnetic Load Cell based | ||||
| 10 | Admixture Weighing System | Electro Magnetic Load Cell based Auto Admixture dozing System | ||||
| 1 1 | Water Pump | 3 HP | 3 HP | 5 HP | 5 HP | 7.5 HP |
| 12 | Cement Screw Conveyor | 168 mm | 219 mm | 219 mm | 219 mm | 273 mm |
| 13 | Air Compressor | 2 HIP | 3 HP | 7.5 HP | 7.5 HP | 10 HP |
| 14 | Control Panel | Fully Automatic PLC Based Control Panel | ||||
| 15 | Total Connected Load | 44 KW | 60 KW | 76 KW | 105 KW | 120 KW |
| 16 | Suggested DG | 82.5 KVA | 100 KVA | 160 KVA | 180 KVA | 200 KVA |
